Introduction: Efficiency Starts Before the Cable Clicks
Charging is, at its core, a dance between power conversion and control. The EV charger power module sits in the middle, deciding how fast and how safely electrons move from grid to battery. Picture a busy motorway plaza on a rainy evening: eight bays, four cars queuing, station uptime shown at 97%, and yet actual throughput lags by 18% during peak hours. So what keeps drivers waiting when the screens say all is well? Often, it is not the cable or the car, but coordination issues inside the module—funny how that works, right?
Across sites, we see recurring signals: thermal derating during warm spells, uneven load sharing between cabinets, and control loops that react a beat too late. Small problems compound. A few percentage points lost in power factor correction or bus voltage stability can ripple into minutes of delay per session. That adds up over a day. The question is simple: how do we compare today’s modules against what is technically possible, without hand-waving? Let’s unpack the gaps and the gains, side by side, and then look ahead.
The Hidden Bottlenecks: What Traditional Modules Don’t Tell You
Some issues are out in the open; others sit in the seams between components. Older designs rely on IGBT-based stages that run reliably, but switch slower and waste heat under heavy load. That means more thermal management overhead, more derating on hot days, and a noisier grid signature from harmonic distortion. Users don’t see that. They just see a slower charge or a forced pause. Add in control firmware tuned for nominal conditions, and you get overcautious protection trips when the grid flickers or when two bays ramp at once. Look, it’s simpler than you think: stability beats peak spec, yet many modules still chase headline watts while ignoring dynamic behavior.
Where do the real bottlenecks hide?
Start with coordination. If the module can’t share load evenly across parallel units over a CAN bus, one cabinet runs hot while another idles. Then, consider galvanic isolation and sensing accuracy; sloppy measurements mean jittery decisions during constant-current to constant-voltage handover. Finally, think about serviceability. Without hot-swap readiness and clear fault telemetry to edge computing nodes, a minor outage becomes a bay-wide slowdown. These are not flashy features, but they decide queue length. And they explain why “97% uptime” can still feel slow on the ground—because throughput, not just uptime, wins the day.
From Spec Sheets to Real Gains: Principles That Move the Needle

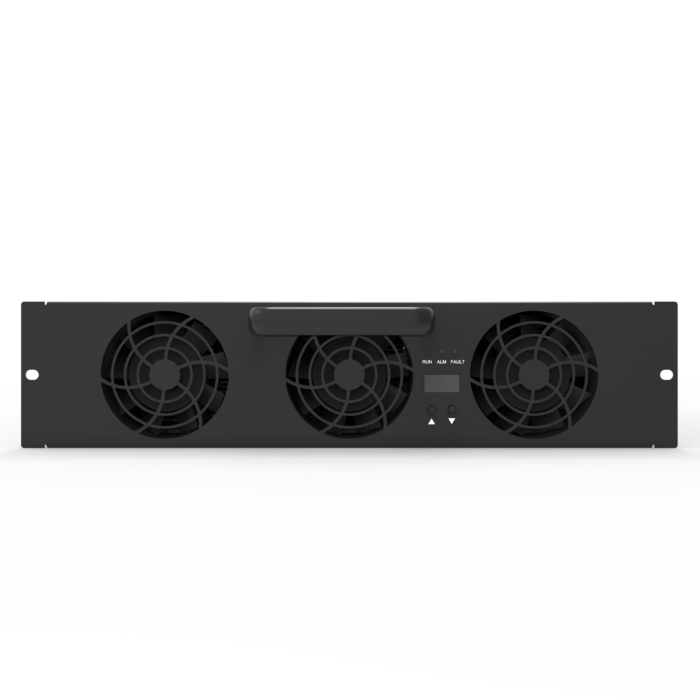

Newer designs go beyond raw wattage and focus on behavior under change. SiC MOSFET-based power converters switch faster with lower losses, meaning smaller heat sinks, gentler derating, and tighter control of the DC bus. Active PFC paired with fast digital control loops makes ramp-ups cleaner during load sharing, while improved sensing reduces overshoot at CV handoff. This is where a design like DC charging module 70 becomes a useful reference point: the principle isn’t just higher power density; it’s predictable behavior across messy grid conditions. Add modular redundancy and safe hot-swap, and maintenance stops shrinking charge capacity—no more “one bay down, queue stalls” syndrome.
What’s Next
Forward-looking sites now compare modules by three dynamics: how they respond to fast transients, how they share load across cabinets, and how they recover from faults without techs on-site. That means tighter bus voltage control during dynamic load steps, firmware that adapts in milliseconds (not seconds), and telemetry that feeds into remote diagnostics. Edge computing nodes help aggregate patterns and preempt small instabilities before drivers feel them—neat, and surprisingly practical. Summing up: reliability is becoming more about graceful behavior than raw nameplate numbers. And—no surprise—the stations that adopt such modules see smoother queues and fewer mid-session tapers.
To choose wisely, weigh three metrics. First, dynamic stability: measure overshoot and settling time during CC/CV transitions and parallel sharing events. Second, thermal performance under sustained peak: track derating thresholds and how quickly the module recovers. Third, observability and serviceability: confirm hot-swap capability, fault taxonomy, and remote firmware control without site visits. Keep those three in view, and the right module rises to the top. The rest is straightforward engineering and steady operations, which is very Dutch in spirit. For broader context and options, see winline EV charger.
